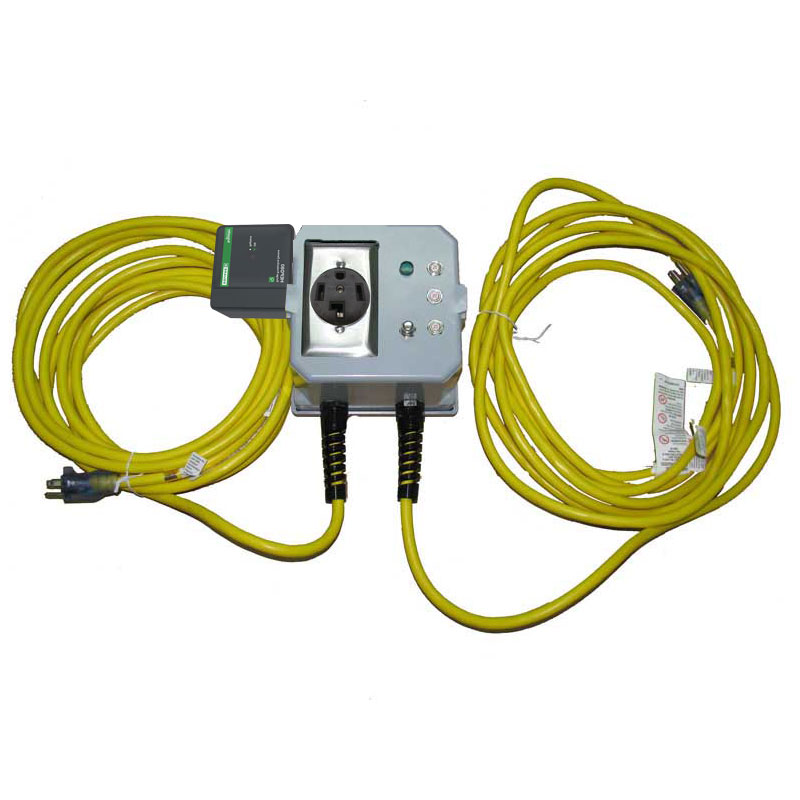

Clean Storm Reverse14-30R 80kA Surge Protected 240V Power Joiner — 4 Wire

Part Number: 20240541

Quick Summary — Read This First

Converts two separate 115/120V outlets into 230/240V single phase power.
Output receptacle: NEMA 14-30R 4-wire — Hot / Hot / Neutral / Ground.
Best for equipment under 20 amps at 240V.
Recommended continuous load: 16 amps or less.
Includes Square D HEPD80 80kA surge protection.
Both outlets must be on opposite electrical phases.
Green light ON = correct setup. No light = move one plug.

The Clean Storm Reverse14-30R 20240541 converts two separate 115/120 volt outlets into 230/240 volt single phase power using a NEMA 14-30R 4-wire receptacle. This model includes factory-installed 80kA surge protection to help protect connected equipment.

How This Power Joiner Works

This unit combines two 120V circuits from opposite electrical phases to create approximately 240V single phase power — similar to a 2-pole breaker.

Plug each cord into a different outlet and press the test button:

Green light ON = correct (240V ready)
No light = move one plug and test again

⚠️ Required Phase Warning — Read Before Use

This unit ONLY works when plugged into two different electrical phases.

Half your outlets are on one phase, half on the other
You must plug into one of each
Same phase = unit will NOT work

How To Use + Video Demonstrations

Why This Is the 4-Wire Version

Hot / Hot / Neutral / Ground
Supports equipment that requires neutral
Compatible with EV chargers and modern appliances

Not the same as 10-30R (3-wire).

Will This Work With My Machine?

Voltage	Must be 230/240V single phase
Plug	NEMA 14-30P
Amp Draw	Under 20A (16A recommended)
Neutral Needed	Supported
3-Phase?	Will NOT work

Top 5 Mistakes to Avoid

Same phase outlets → no 240V
Assuming any 2 outlets work
Over 20 amp equipment
Ignoring 16A continuous limit
Wrong plug type

What Equipment Can Run on This?

EV chargers (set to 16–20A)
HEPA vacuums
Small grinders
Pressure washers
Portable heaters
Light-duty welders

80kA Surge Protection Advantage

Includes Square D HEPD80 surge protection to protect high-value equipment.

Specifications

Output: 240V single phase
Receptacle: NEMA 14-30R
Max Output: 20A
Continuous: 16A recommended
Max Watts: 4600W
Cords: Dual 12/3 x 25 ft

Important Power Limitation

Does NOT increase power
Limited by wall circuits
Two 20A circuits = 20A max

Safety Requirements

Test outlets with polarity tester
Verify voltage with meter
Confirm opposite phases
Do not use in wet conditions

Advanced Phase Explanation (For Troubleshooting)

Breaker panels alternate phases. If you pick two outlets randomly, there is a 50% chance they are on the same phase.

You must land on one outlet from each phase to generate 240V.

If not working, move one plug to another outlet until the green light turns on.

Important Disclaimer

User assumes all responsibility. Verify voltage, polarity, phase, and amp draw before use.

Temporary power only. Not a permanent wiring solution.

Bundle Includes

Square D HEPD80 80kA Surge Protector (Factory Installed)

Clean Storm Reverse14-30R Power Joiner

Download Owners Manual

“Understanding GFCI Limitations with 240V Power Joiners”

Which Power Joiner Do I Need? (Download Comparison Guide)
