Husqvarna 970605005, PG 8 D Professional Floor Concrete Grinder, 3x440-480 V, 15+1.5 kW, 31.5in, 3 ph, 22 hp, 1257lbs, Diamond segments, 970 60 50-05, 967977802 GTIN 805544361507

Description

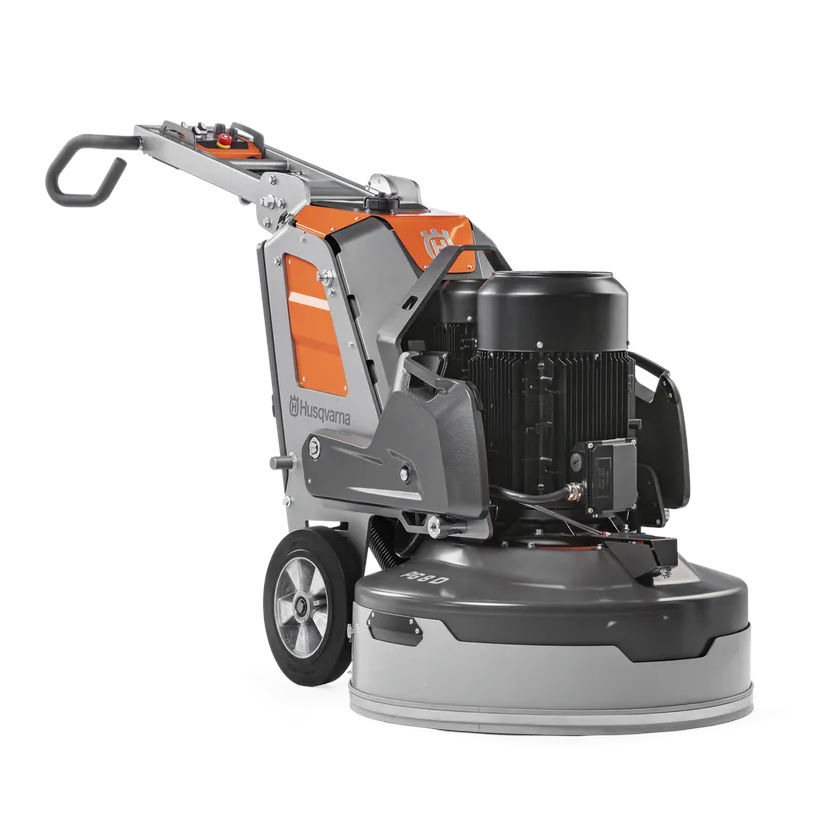

The PG 8 D is a powerful planetary floor grinder with Dual Drive Technology™. This feature lets you adjust the grinding discs' rotation speed and direction independently of the drum. The machine is an excellent choice for all applications, from preparing to grinding and polishing concrete and stone floors. The mist cooler system cools the diamond tools, significantly increasing the removal rate and reducing the risk of glazing the tools (compared with not using the mist cooler system). If needed, the integrated adjustable weights can be used to increase grinding pressure and productivity.

Ergonomic features like the integrated weights and adjustable handle and handle bar make handling the machine more convenient.

The hermetically sealed design of the grinding head and electrical cabinet, along with the robustness of the components, contributes to high reliability and low maintenance.

Features

Dual Drive technology™ makes it possible to adjust the grinding discs' rotation speed and direction independently of the drum. This allows you to optimise your tools and grind as efficiently as possible. The machine's high grinding pressure means a high removal rate.
The mist cooler system sprays a fine mist on the floor, which cools the diamond tools. This makes it possible to achieve a better cut, reduces the risk of glazing the tools, and significantly increases productivity.
Sealed grinding head with 1000 hrs service interval. This prevents dust or water to intrude and damage components.
Dust sealed electrical cabinet with external cooling technology. This prevents dust to intrude and damage components.
The robust steel floating shroud follows the floor surface for optimal dust pick-up – no adjustments needed.
Adjustable handle for better ergonomics.
EZchange™ is an instant and hassle-free system for changing diamond tooling.
The integrated weights allow you to adjust the grinding pressure into different preset positions. They also make it easier to tilt the machine.
The optional light kit substantially improves visibility of the floor while you grind. Thanks to magnetic attachments, they are easy to position and adjust.
Husqvarna Fleet Services™ is a digital, cloud-based asset management service that gathers and presents key machine data. Machine sensors are either embedded or retrofitted to the exterior of the machine.
Tool holder plates are easily removed without the need of special tooling.
The EZchange™ tool holder with Airflow technology creates an increased and controlled airflow around the tools. This cools the tools and directs dust towards the extractor.

Specification

Engine
Engine Power (As rated by the engine manufacturer)	22.1 hp
Motor
Power source	Corded
Rated input power	22.1 hp
Phases	3 ph
Voltage	440-480 V
Rated current	30 A
Frequency	50-60 Hz
Pins	3P+E
Equipment
Grinding width	31.5 in
Number of grinding discs	3
Direction of rotation	Both directions
Grinding disc diameter	10.6 in
Grinding disc speed min	420 rpm
Grinding disc speed max	1,176 rpm
Transmission
Type of operation	Push
Dimensions
Product size length	54.8 in
Product size width	33 in
Product size height	44.6 in
Weight	1,257 lbs
Packaging length (Calc)	55.118 in
Packaging width (Calc)	35.433 in
Packaging height (Calc)	57.874 in
Article gross weight (Calc)	1,344.82 lbs

Cross Reference Skus

970 60 50-05
970605005
967 93 20-05
967977802

Documentation

Manual
Parts List
