10-Pack Brinkley RV Drain Dump Valve Switch – DPDT 7 Terminal | ON/OFF/ON Momentary | Illuminated Reversing Rocker 20260408

✅ Key Features (Above-the-Fold Bullet Section)

• Direct Replacement for Brinkley RV Dump Valve Switches
• DPDT Reversing Polarity Design (Open / Close Valve Control)
• 7-Terminal Configuration for precise wiring compatibility
• Momentary ON/OFF/ON Action (Spring return to center)
• Built-in Illumination Indicator (visual valve position feedback)
• Heavy-Duty Rocker Construction – Designed for RV environments
• Water-Resistant Face for outdoor control panels
• Ideal for Black & Gray Tank Valve Systems

🧰 What This Switch Does

This DPDT reversing rocker switch is used to control electric RV dump valves, allowing you to open and close black or gray water tanks with a single switch.

Unlike standard on/off switches, this unit:

• Sends power in one direction to OPEN
• Reverses polarity to CLOSE the valve
• Returns to center OFF position automatically

This is critical for powered valve systems commonly found in modern RVs like Brinkley units, where proper polarity control is required for motorized valves.

⚙️ Technical Specifications

• Switch Type: DPDT (Double Pole Double Throw)
• Function: ON / OFF / ON (Momentary)
• Terminals: 7 Pin Configuration
• Operation: Reversing polarity switch
• Illumination: Yes (Indicator light built-in)
• Mount Type: Panel mount rocker
• Application Voltage: (Add exact voltage if known – important for conversions)

🔌 Compatibility

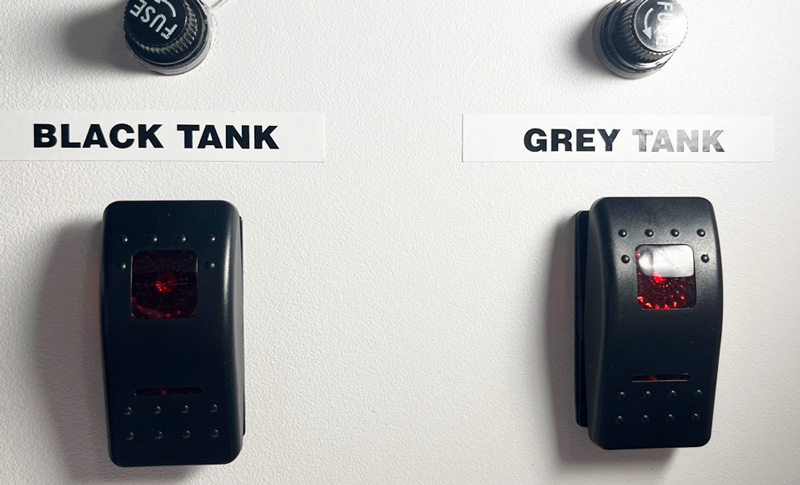

• Brinkley RV Dump Valve Control Panels
• Electric Black Tank Valve Systems
• Electric Gray Tank Valve Systems
• Other RV / Marine / Trailer reversing motor applications

🧪 Why This Switch Matters

RV dump valve systems rely on correct polarity switching to prevent:

• Valve motor damage
• Incomplete opening/closing
• Electrical failures

Using the wrong switch (like a simple ON/OFF) can result in one-direction operation only.

• Water resistance face
• Illuminated indicator
• Heavy-duty rocker

Q: Is this a latching switch?
A: No, this is a momentary switch (spring return to center OFF).

Q: Can I use this for other applications?
A: Yes, any reversing motor application (actuators, valves, winches).

Q: Does this replace my Brinkley factory switch?
A: Yes, if your switch is a 7-terminal DPDT momentary reversing type.

✅ What your RV dump valve switch is

For an RV electric dump valve (gate valve with actuator), your switch is:

👉 DPDT (ON)-OFF-(ON) momentary, illuminated, reversing rocker

• Press (and hold 5 seconds) top side → opens valve (light stays on)

• Press (and hold 5 seconds) bottom side → closes valve (light go off)

• Release → springs back to OFF

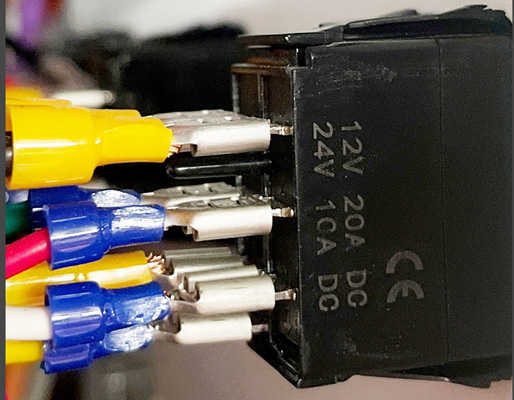

• 7 pins = DPDT reversing + light


• Correct function (momentary ON-OFF-ON)

• 7-pin illuminated

• Designed for motor/actuator reversing


  • DPDT (double pole)

  • (ON)-OFF-(ON) momentary

  • Reversing polarity type ⚠️ (this is key)

  • 7 terminals (with light)

  • 20A+ rating

    Please turn off solar panels, turn off battery switch, and un-plug your shore cord during service!
