DriStorm 184 / 239 Dehumidifier Fan Capacitor
Part 20160328 / Suntec SDP0104004

Replacement fan-motor run capacitor for select DriStorm, Suntec, Nikro, and Abatement Technologies commercial dehumidifiers.

This capacitor helps the dehumidifier fan motor start and run efficiently by providing the electrical phase shift required by the motor. A weak or failed capacitor may prevent the fan from starting, cause slow fan operation, or make the motor overheat.

Product Specifications

DriStorm Part Number	20160328
Suntec Part Number	SDP0104004
Capacitor Type	Fan-motor run capacitor
Capacitance	16 µF
Tolerance	±5%
Voltage Rating	250 VAC
Frequency	50/60 Hz
Capacitor Marking	CBB6-1
Maximum Temperature	70°C / 158°F

Known Model Compatibility

DriStorm 184
DriStorm 184H
DriStorm 239
DriStorm 239H
Abatement Technologies AquaTrap AT250R
Select Nikro LGRII commercial dehumidifiers
Select Suntec-built dehumidifiers using SDP0104004

Compatibility notice: Dehumidifier components can vary by production date, serial number, and model revision. Confirm the original capacitor is rated 16 µF, 250 VAC and compare the mounting style and electrical connections before ordering.

Possible Symptoms of a Failed Fan Capacitor

Fan motor hums but does not start
Fan starts only when manually assisted
Fan runs slowly or inconsistently
Dehumidifier has weak airflow
Fan motor overheats or shuts off
Capacitor housing is swollen, cracked, leaking, or heat damaged
Capacitance tests outside the acceptable tolerance range

Diagnostic note: Weak airflow may also be caused by a dirty filter, obstructed coil, damaged fan wheel, failed motor, loose wiring, or control-board problem. Test the capacitor and inspect the fan system before replacing parts.

Terminal and Lead Configuration

Depending on available factory production, this capacitor may be supplied with attached wire leads or with standard 1/4-inch male spade terminals. Either version may be used when the electrical specifications and connections match the original application.

Package Includes: One 16 µF fan-motor capacitor, as pictured or an electrically equivalent factory replacement.

Not Included: Fan motor, wiring harness, mounting bracket, control board, dehumidifier, or other repair components unless specifically shown.

Installation Safety

Disconnect the dehumidifier from electrical power.
Allow the machine to remain unplugged before opening the cabinet.
Properly discharge the existing capacitor before touching its terminals.
Photograph and label all wires before disconnecting the old capacitor.
Install the replacement using the same wiring arrangement as the original.
Secure the capacitor so it cannot contact fan blades or moving components.
Reinstall all protective covers before restoring power.

Electrical hazard: Capacitors can retain an electrical charge after the machine is unplugged. Installation should be performed by a qualified service technician familiar with capacitor discharge procedures and electrical testing.

Before Ordering

Verify the original rating is 16 µF.
Confirm the replacement voltage rating is suitable for the application.
Compare the terminal or wire-lead configuration.
Verify the mounting space and physical dimensions.
Confirm part number 20160328 or Suntec SDP0104004 when available.

Product photographs are for identification and reference. Purchases are fulfilled according to the listed part number and electrical rating. Manufacturer, housing shape, terminal arrangement, color, and printed markings may change without notice.

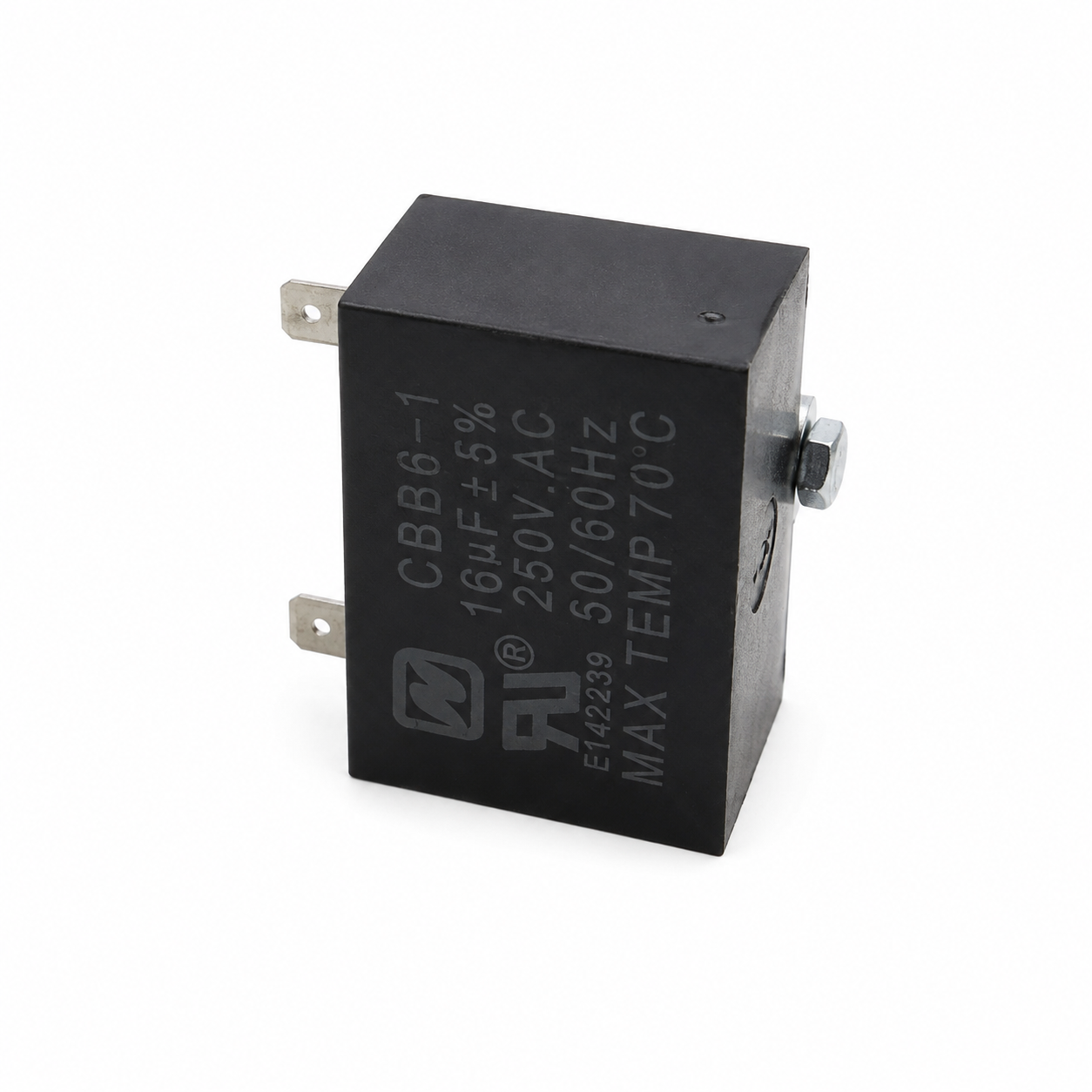

DriStorm 184 and 239 Model Fan Capacitor
Can be used as the fan capacitor for 184, 184H, 239, 239H, Abatement Technologies AT250R Aquatrap, and Nikro LGRII Dehumidifiers
CBB6-1
16uF+5%
250 V AC
50/60Hz
Max Temp 70 degrees C
Sometimes these ship with leads and sometimes with 1/4" spade connectors.
