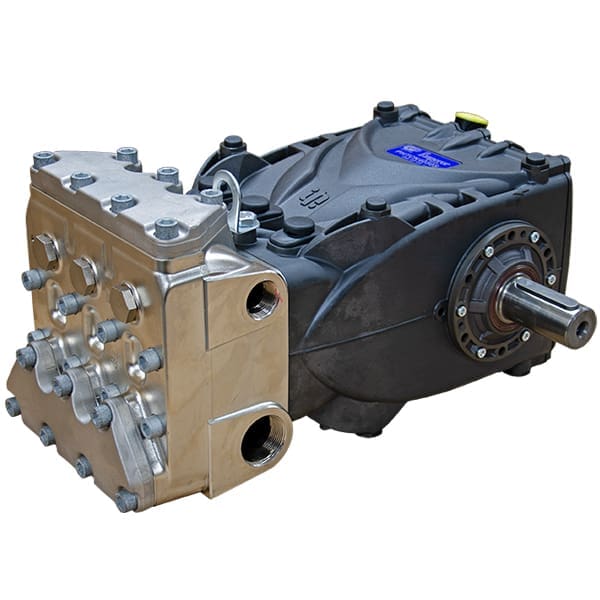

General Pump PHTCK4050S PHTCK Series 71HT – 40mm Solid Shaft

Description

The General Pump PHTCK4050S is a plunger pump that features their updated proprietary industrial seal stack that delivers superior durability in cold water applications with temperatures of 140 degrees Fahrenheit or less, even when water quality is poor. Each pump is equipped with a manifold constructed of forged brass coated in a nickel plating that provides superior strength and corrosion resistance. This pump produces a maximum pressure of 1500 PSI making it ideal for car wash and high pressure cleaning applications.

Specifications

GPM	40.0
PSI	1500
LPM	151
BAR	103
RPM	800
Bore	40mm
Stroke	50mm
EBHP	41.1
Max. Inlet Pressure	125 PSI
Max. Fluid Temperature	140° F
Inlet Port Thread	1-1/2” NPT-F
Discharge Port Thread	1” NPT-F
Shaft Diameter	1.575 in./40 mm
Pump Dimensions	20.7"x14.5"x9.9"
Shipping Weight	157.0 lbs.
Crankcase Oil Capacity	124.4 oz.

Spec. Sheet

Repair Manual
