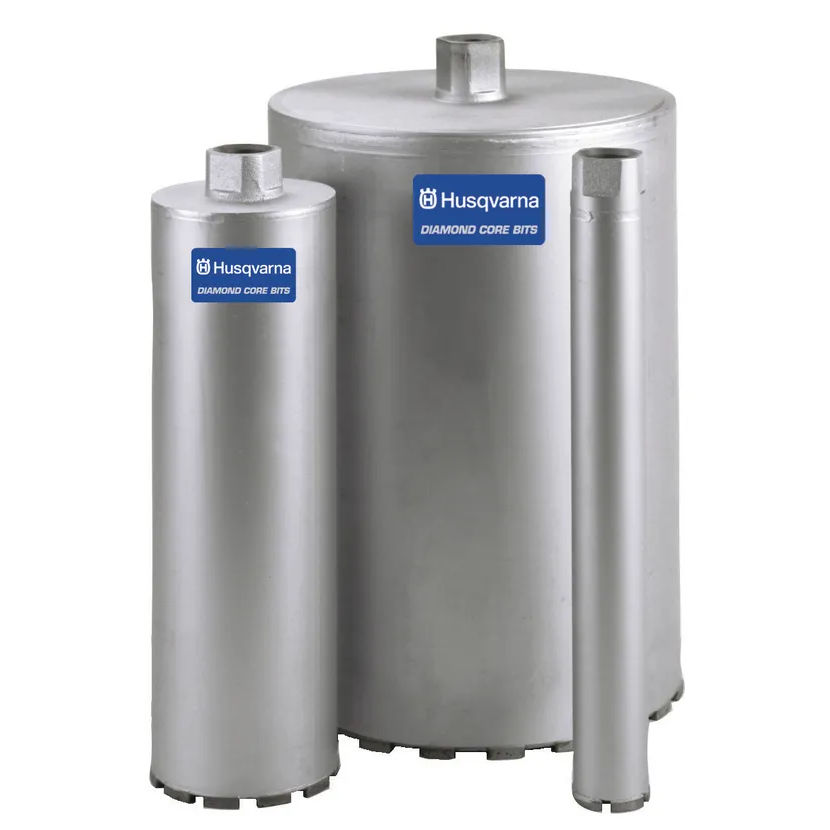

Husqvarna 542786636, Banner Line General Purpose Bits, 5/8 in (16 mm), 14CT, Silver, 542 78 66-36, Freight Included, GTIN 805544455336 [542786636]

Click to enlarge

Your Price: $125.34
Part Number: 542786636
Quantity:
Estimated shipping cost: Free shipping

Husqvarna 542786636, Banner Line General Purpose Bits, 5/8 in (16 mm), 14CT, Silver, 542 78 66-36, Freight Included, GTIN 805544455336

Description

Applications: General purpose drilling of reinforced concrete with soft to hard aggregate, masonry, brick and block

Banner Line bits are used for general purpose drilling of concrete, masonry and brick. This includes concrete with soft to hard aggregate and light to medium steel reinforcing and is also effective on granite, marble and stone. Custom specs are available including open-end, spoke-back, non-standard length and threaded tubing for deep drilling.

Features

Thin tube and segments with lighter weight enables smooth and rapid drilling especially for handheld applications.
Designed to cover a wide number of applications while offering problem-free drilling with most drill motors and materials.

Specification

Product data
Performance level	Silver
Number of segments	1
Coolant	Wet
Power range, max hp	5 hp
Power range, min hp	2 hp
Dimensions
Diameter inch	0.625 in
Core length inch	14 in
Segment length inch	0.625 in
Segment width inch	0.125 in
Segment height inch	0.4 in
Packaging length (Calc)	19.016 in
Packaging width (Calc)	2.52 in
Packaging height (Calc)	2.362 in
Article gross weight (Calc)	1.052 lbs

Products Using This

965987206 DM 340
966554101 DM 280
965158202 DM 406 H

Husqvarna 966827304, DS250 Core Drill Stand Midsize Lightweight Max 9.84Dia 26.97Travel Single Speed GTIN 805544822275

Husqvarna 965173601, Core Drill Motor Vacuum Suction Stand, Bundle DMS240 120V, GTIN 805544582742

Husqvarna 965173601, Drill Motor Stand DMS240, 120V 20Amps Freight Included, GTIN 805544582742

Husqvarna 966563503, DMS 220 Electric Corded Core Drill Motor, 120V 2.5Hp, Freight Included, GTIN 805544788175

Husqvarna 968411301, Core Drill Motor, DM230 110V, GTIN 805544478052

Husqvarna 966916101, Core Drill Motor Stand, DMS 180 966 91 61-01, Freight Included, GTIN 805544582711

Husqvarna 970445602, DM 430 Electric Core Drill Motor Rig, 120v 4.2Hp 18IN Max, Freight Included, GTIN 805544252584

Husqvarna 970445703, Core Drill Motor, DM200 2.68Hp 11.5Lbs Max Bit 4IN 970 44 57‑03, Freight Included, 805544480062

Husqvarna 970455301, DMS 400 Drill Motor Stand, with DS 500, Freight Included, GTIN 805544254908
