Husqvarna 970449401, DMS 700 Electric Core Drill Motor Rig, 480/230V 8Hp 1 & 3 ph, Freight Included, GTIN 805544472043 [970449401]

Click to enlarge

Your Price: $8,155.69
Part Number: 970449401
Quantity:
Estimated shipping cost: Free shipping

Husqvarna 970449401, DMS 700 Electric Core Drill Motor Rig, 480/230V 8Hp 1 & 3 ph, GTIN 805544472043

Description

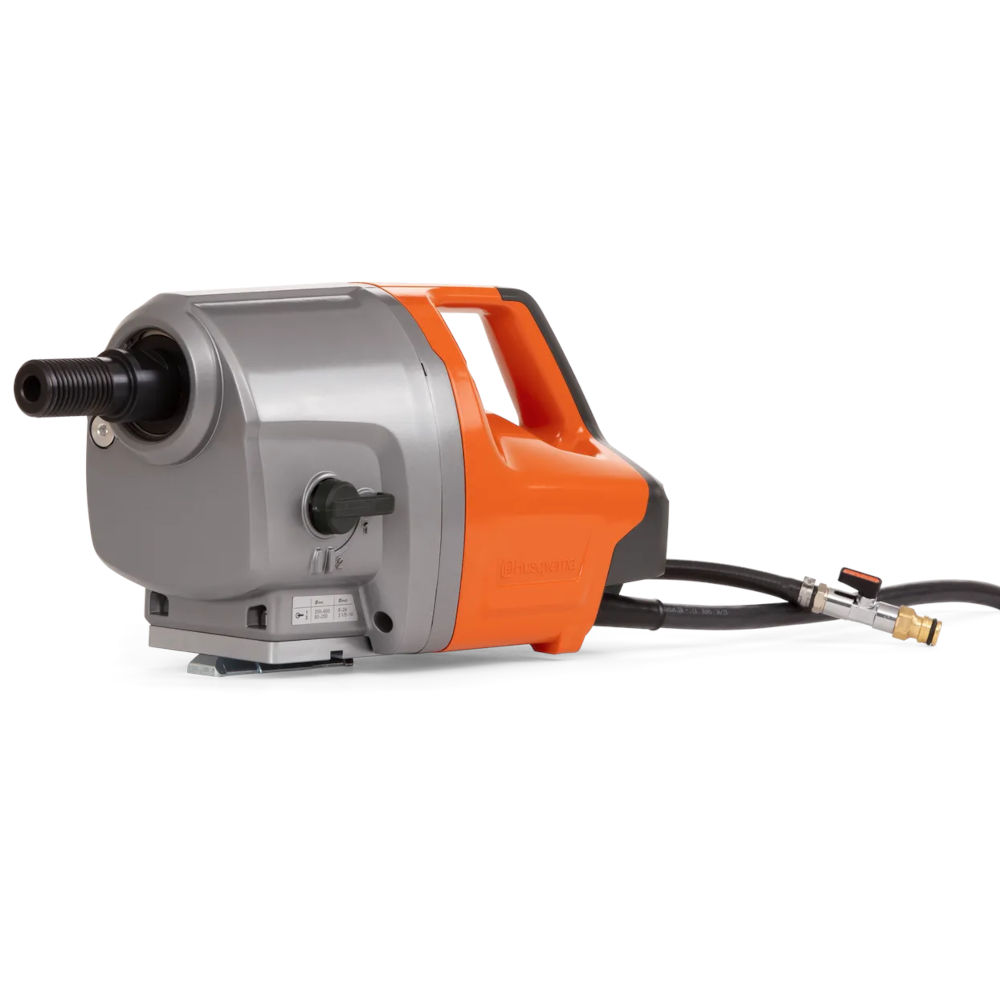

The Husqvarna DM 700 is the most powerful electric drill motor in our range, designed for all-day use by professional drilling contractors. It is equipped with a maintenance-free, water-cooled 8 hp (6 kW) permanent magnet high-frequency motor delivering extremely high torque to handle large drilling dimensions and depths. The intelligent motor control software enables optimized rpms for a wide range of drilling diameters, from 3-24 in (80 to 600 mm).

Features

Increased drilling performance giving higher productivity when paired with PP 70.
18-step adjustable rpm range ensures optimal speed for all drill bit dimensions through PP 70.
The motor delivers 8 hp on the spindle (4 hp on 1-phase).
Dust and water proof, water-cooled motor with minimal service requirements.
Durable and shock-proof, designed to protect the electronics. Easy to carry and install thanks to low weight and ergonomic design.
An LED indicator shows the load of the machine, allowing you to always drill at maximum pressure.
Speed is reduced to increase torque through rebar and hard aggregates for increased productivity.
The machine uses pulsation to warn you of an approaching overload. This increases productivity and extends product life.
The LED indicator shows the load of the machine, allowing the operator to always drill at maximum pressure, for best performance.

Specifications

Motor
Rated input power	8 hp
Output shaft RPM, max	675 rpm
Cutting equipment
Drill bit diameter with stand, max	24 in
Recommended drill bit diameter, min	3.2 in
Transmission
Number of gearbox speeds	2
Product data
Water connector	G 1 / 4"
Water flow, min	0.13 gal (US)/min
Water pressure, max	116 psi
Spindle thread, outer	1 1/4" 7 UNC
Dimensions
Product size length	18 in
Product size width	6.5 in
Product size height	8.5 in
Weight	30.8 lbs
Packaging length (Calc)	20.669 in
Packaging width (Calc)	10.827 in
Packaging height (Calc)	10.433 in
Article gross weight (Calc)	37.479 lbs
Sound and noise
Sound power level, guaranteed (LWA)	113 dB(A)
Sound power level, measured	112 dB(A)
Sound pressure level at operators ear	98 dB(A)
Vibration
Vibrations left/front handle	1 m/s²
Certifications
CE certified	Yes

Documents

Parts List
