AR Pump RCV25G25D-F7 Pump: 2.5GPM 2500PSI [RCV25G25D-F7]

Click to enlarge

Your Price: $365.55
Part Number: RCV25G25D-F7
Quantity:
Estimated shipping cost: $ 16.00

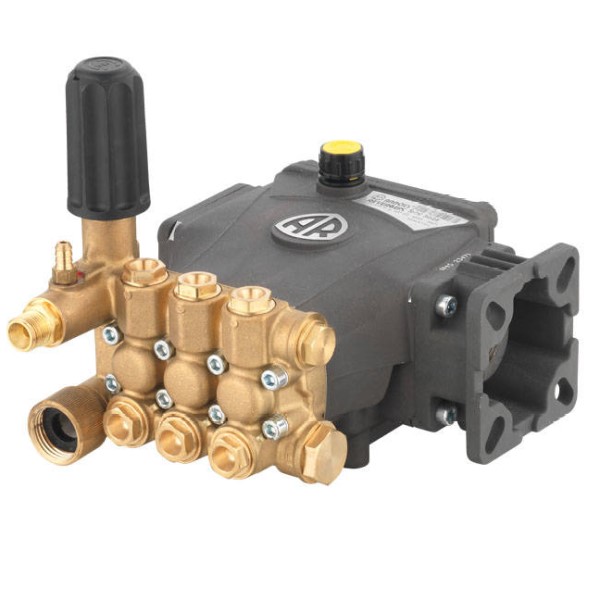

AR RCV25G25D-F7 Pump

Description

RCV2.5G25D-F7 series pumps are designed for a wide variety of high pressure washing applications. They are constructed with die-cast bodies and feature a brass head. Internal components include special thick solid ceramic plungers for long life and durability. Precision cast cooling fins are anodized for maximum heat dissipation. Oversized needle bearings on the drive side, and ball on the non-drive side together with the precision supports assure positive alignment and centering in relation to the crankcase. Valve cages of special designed Ultra-Form provide positive seating and extended life. Ball bearings on both sides of solid shaft drive pumps. One-piece connecting rods are special alloy aluminum, oversized for strength and load disbursement.

Features

Manifold: High strength forged brass for long term use.
Bolts: Eight 6mm.
Plungers: NPW ceramic Plungers, thicker wall to help prevent thermal shock.
Valves: stainless steel, valve seat o-rlng is side mounted.
Seals: High quality high pressure seals. NEW low-pressure seal with a built in scraper.
Piston Guides: two piece piston guides.
Drive End: NEW connecting rod with 12% more load surface. Large side cover sight glass, oversized bearing. Rear cover oil drain.
Crankshaft Forged, precision ground.
Large side cover sight glass, oversized bearing. Rear cover oil drain.

Specifications

Max GPM : 2.5
Max LMP : 9.5
Max PSI : 2500
Max Bar : 170
Power EBHP : 4.3
Bore Dia. mm : 15
Stroke mm : 5.6
Inlet Thread : 1/2"F
Discharge Thread : 3/8"F
Oil Capacity : 9.81oz
