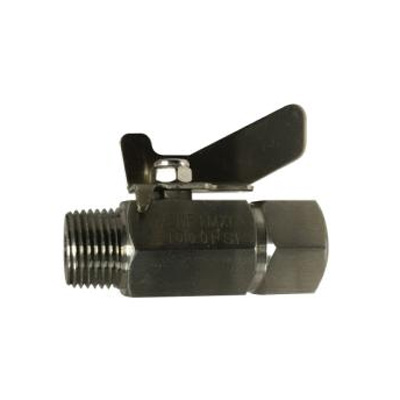

316 Stainless Steel 1000Psi High Pressure Mini Ball Valve 3/8Mip Male X Female Pipe 46904SS 368 Degrees F High Temperature

Brand : Clean Storm
Ball Material : 316 Stainless Steel
Body Material : 316 Stainless Steel
Connection Type : MPT x FPT
Dimensions : 2.45 in L
Handle Material : Steel
Inlet to Outlet Length : 2.45 in
Nominal Size : 3/8 in
Operator Type : 1/4-Turn Butterfly Handle
Port Type : Full
Pressure Rating : 1000 psi WOG
Seal Material : PTFE
Seat Material : PTFE
Stem Material : 316 Stainless Steel
Temperature Rating : -36 to 368 °F
Thread Size : 3/8 - 18
Top to Inlet Center : 1-1/2 in
Trim Material : Fluoroelastomer O-Ring
|
