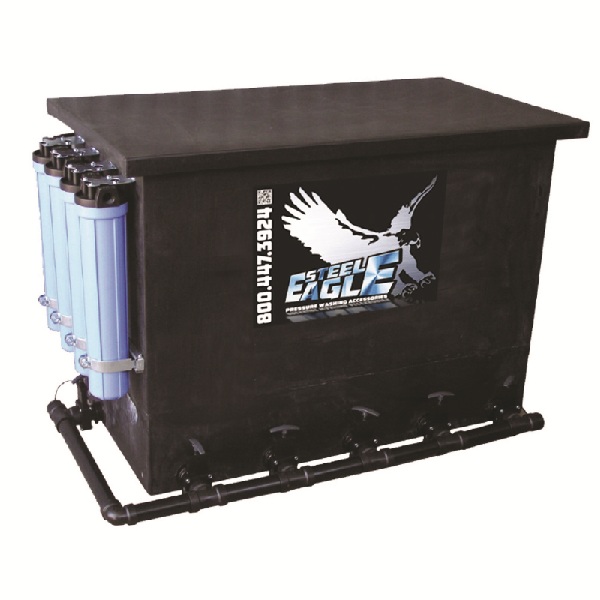

Steel Eagle K01-2500 X11 Waste Water Recycle System

Description

The Steel Eagle X-11 Recycle System is the latest addition to our Reclamation systems line of products. For use with all Fury 2400 Vacuum systems.

Increased efficiency of the X-11 is due to the innovative design with a greater water capacity allowing improved settling time for suspended solids which helps prolong the life of the polishing filters. Even greater efficiency and filter life is maintained by adding our primary separation tank for use as a pre-filter for the X-11.

Oleophilic (oil attracting) coalescing plates, reusable oil filtering foam media, oil absorption skimmer media and improved clarity with a four-step reduction polishing filter manifold removing suspended particles down to a five micron size at a rate of 11 gallons per minute.

Specifications

• Electrical Requirements 120 Vac @ 2000 Watts
• Flow Rate 11 GPM Maximum
• Weight (Dry) 300 lbs.
• Inlet 1” NPT
• Outlet 3/4" NPT

Dimensions

• Length 60”
• Depth 42”
• Height 48”
