PMF U1510 Standard Upholstery Tool Open Spray Plastic Valve No QD Stainless Steel 1.5Inch Pipe Esteam 255-015 Powrflite AA163 [U1510]

Click to enlarge

Your Price: $107.74
Part Number: U1510
Quantity:
Estimated shipping cost: $ 19.00

Product Options
Quick Disconnect Coupler Needed:

PMF U1510 Standard 4 Inch Open Spray Upholstery Tool - 120 PSI Plastic Valve

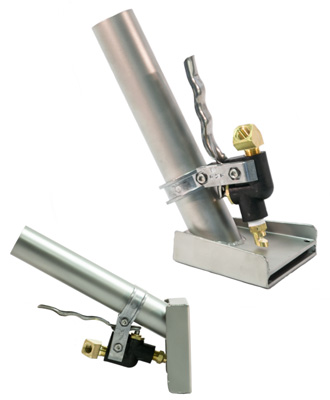

The PMF U1510 is a professional open-spray upholstery and detail cleaning tool built for carpet cleaners, auto detailers, portable extractors, and low-pressure non-heated cleaning systems. This tool is made with stainless steel construction, a 4 inch wide pickup head, and a 9 inch handle for cleaning furniture, stairs, cushions, fabric panels, vehicle interiors, and other small areas where a full-size wand is too large.
Also marketed under Powrflite AA163 and Esteam 255-015

Key Features

PMF part number: U1510
Tool style: Open spray upholstery hand tool
Pressure rating: 120 PSI plastic Acetal valve
Construction: Stainless steel body and handle
Head width: 4 inch wide pickup head
Handle length: 9 inch handle
Jet: K2 standard jet, K1 optional
Vacuum tube: 1.5 inch pipe
Overspray control: Built-in overspray control holes
Made by: Production Metal Forming / PMF

Best Uses

Upholstery cleaning
Auto detailing and vehicle interiors
Furniture and fabric cleaning
Small carpeted areas and spot cleaning
Portable extractor hand tool work
Non-heated low-pressure extractor systems

Important Pressure and Heat Note

This version uses a 120 PSI plastic valve and is best matched with low-pressure, non-heated machines. For heated extractors, truckmounts, or higher pressure cleaning systems, consider upgrading to a brass valve or higher pressure upholstery tool.

Open Spray vs. Side Shielded Spray

Feature	Open Spray U1510	Side Shielded Spray Tool
Spray visibility	Easy to see spray pattern	Spray is more contained
Overspray control	Good, with control holes	Better containment
Heat retention	Lower	Better
Best application	General upholstery, spotting, auto detailing	More controlled fabric cleaning

Quick Disconnects Are Not Included

This tool does not include quick disconnects. Please add the correct male, female, or matching quick disconnect set for your extractor, hose, or truckmount setup before checkout.

Common Questions

Will this work with my portable extractor?

Yes, this tool is commonly used with portable carpet extractors and detail machines, provided the pressure is compatible with the 120 PSI plastic valve.

Can I use this on a heated machine?

This plastic valve version is recommended for non-heated, low-pressure systems. For heated extractors or higher pressure systems, choose a brass valve or higher pressure upholstery tool.

Does this include the quick coupler?

No. Quick disconnects are sold separately so you can match the tool to your exact hose and machine connection.

What makes this better than a cheap upholstery tool?

The PMF U1510 uses stainless steel construction, a professional 4 inch pickup head, a standard serviceable jet setup, and is made by PMF, a long-time manufacturer of professional carpet cleaning wands and upholstery tools.

Suggested Add-On Items

1/4 inch male brass quick disconnect
1/4 inch female brass quick disconnect
Male/female quick disconnect set
Horse hair upholstery brush
Upholstery prespray and rinse chemicals

Production Metal Forming Inc. is the largest manufacturer of carpet wands, upholstery tools, valves and other accessories for carpet and upholstery cleaning industry. We created the patented Hide-A-Hose and the patented Internal Spray Detailer. We also make proprietary items for OEM manufacturers of the industry. PMF's reputation is built on first-rate customer service and quality products "Made in the USA."

Standard Upholstery Tool Open Spray (Plastic Valve)

U1510-120psi, plastic valve

Stainless steel construction
4inch wide pick-up head, 9inch handle
Overspray control holes
K2 or K1 jet available
Acetel (plastic) valve-120psi for Non Heated Machines

Note: Quick disconnects are not included with tool. Please add connectors to your shopping cart...

Foster: 1/4in Male Brass Quick Disconnect QD

Foster: 1/4in Female Brass Quick Disconnect QD

Foster: 1/4in Male/Female Set Brass Quick Disconnect QD

PMF has been in business for 43 years now and growing. We are a family owned business with many long time employees who are considered family to us. Our employees craft each tool expertly and each one is made with great care and attention to detail.

YOU... our customers are the most important thing to us and our customer service will go above and beyond the call of duty to please you. You will always talk to a human and NEVER be dumped into one of those irritating voicemail systems.

If there is something that you need and don't see it in the catalog.... Just ask one of helpful sales people and we just might have it! ! ! Thank you for being the greatest customers in the world, we look forward to providing you with the highest quality items for many years to come.

Thanks from all us at PMF

Optional:

Horse Hair Brush with Comfort Grip Handle For Upholstery Cleaning
