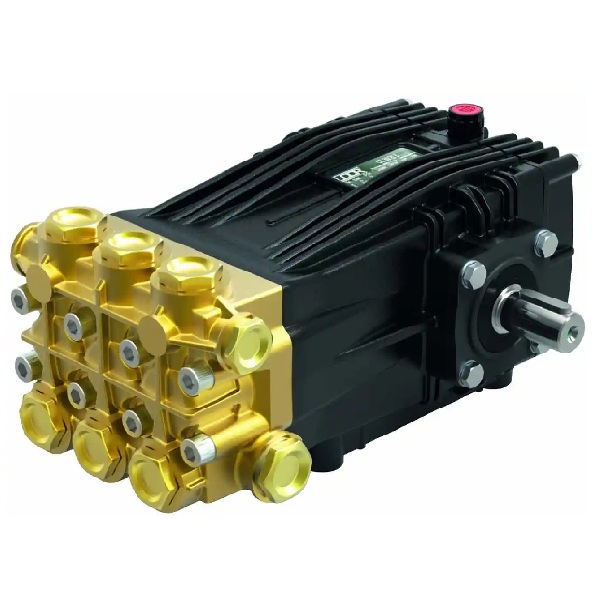

Udor USA CC 38/17 S Solid Shaft Model, 24mm Keyed Solid Shaft 10.0 GPM/2500 PSI/1450 RPM [CC 38/17 S]

Click to enlarge

Your Price: $795.34
Part Number: CC 38/17 S
Quantity:
Estimated shipping cost: $ 33.00

Udor USA CC 38/17 S Solid Shaft Model, 24mm Keyed Solid Shaft 10.0 GPM/2500 PSI/1450 RPM

Description

The Udor plunger pumps of the C series can operate with a maximum pressure of 200 bar and they can supply water up to 70 l/min. The performances of this family of pumps makes the Udor "C" suitable for use on automatic car wash gantries, on small vehicles used for urban cleaning, or on fire-fighting and misting systems.

Features

Solid Ceramic Plungers
Stainless Steel Check Valves
Heavy Duty Brass Manifold with External and Internal Bracing
High Strength Aluminum Alloy Connecting Rods
Large Diameter Brass or Stainless Steel Valve Caps with Increased Thread Depth
Reinforcing Ring on Inlet and Discharge Ports
Deeper Back Cover for Increased Oil Capacity
35 oz. Capacity Vented Oil Bath Crank Case
3/4″ BSP-F Inlet. 3/8″ BSP-F Outlet: 5.5-8.5 GPM
3/4″ BSP-F Inlet. 1/2″ BSP-F Outlet: 9.0 GPM & Above
Max Fluid Temp, 160°F

Specifications

Flow – GPM	10.0
Flow – L/min	38
RPM	1450
PSI	2500
Bar	170
Power Req.	17 EBHP
Seal Kit	6061.12 (Kit 12)
Valve Kit	6061.03 (Kit 3)
Weight	36 lbs.
