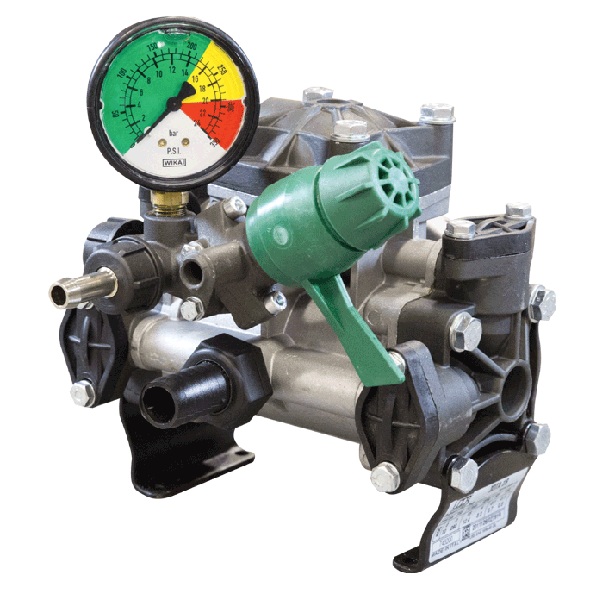

Udor USA IOTA 20 IOTA Series 2-Cylinder, Low-Pressure Diaphragm Pump 14 mm Tapered Shaft 5 GPM/300 PSI/600 RPM [IOTA 20]

Click to enlarge

Your Price: $558.30
Part Number: IOTA 20
Quantity:
Estimated shipping cost: $ 13.00

Udor USA IOTA 20 IOTA Series 2-Cylinder, Low-Pressure Diaphragm Pumps 5 GPM/300 PSI/600 RPM

Description

IOTA 18, IOTA 20 & IOTA 25 low pressure, two diaphragm pumps are internally manifolded, with anodized aluminum and stainless steel construction.

All models include pulsation dampener.

The IOTA 18 M includes a 1 HP, 115 volt electric motor and base plate.

The IOTA 20 GR & IOTA 25 GR include gear reductions for 3/4” shaft gasoline engines.

IOTA 18, IOTA 20 & IOTA 25 pumps are excellent for
various lawn care, horticultural, agricultural, nursery, pest control and turf spraying applications.

Features

Can be run dry
Visual oil sight gauges
Self-priming operation
Stainless steel check valves
Large capacity oil bath crank cases with drain plugs for ease of maintenance
One-piece stainless steel diaphragm bolts
Heavy-duty pre-formed urethane diaphragms

Specifications

Flow – GPM	5.0
Flow – L/min	19
PSI	300
Bar	20
RPM	600
Drive Configuration	14 mm Tapered Shaft
Weight	9 lbs

Breakdown Sheet

Dimensions

Product Page

Manual
