Udor USA KAPPA 15 12 Volt HP KAPPA Series Pump Motor Assembly 2 Diaphragm HD 12-Volt DC Electric Motor 3.5 GPM/200 PSI/35 Amps [KAPPA 15 12 Volt HP]

Click to enlarge

Your Price: $1,171.40
Part Number: KAPPA 15 12 Volt HP
Quantity:
Estimated shipping cost: $ 32.00

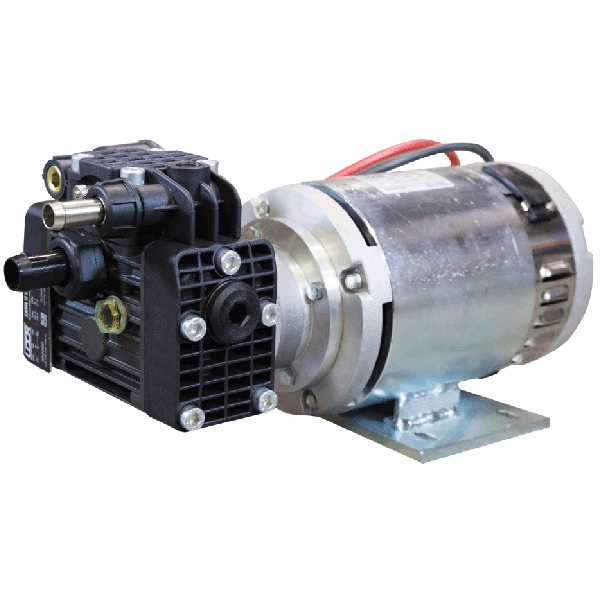

Udor USA KAPPA 15 12 Volt HP KAPPA Series Pump Motor Assembly 2 Diaphragm HD 12-Volt DC Electric Motor 3.5 GPM/200 PSI/35 Amps

Description

The KAPPA 7DC, 15DC & 18DC are internally
manifolded, two diaphragm pumps with pulsation
dampener, Anodized aluminum and glass-filled
nylon construction. Additional pressure regulator
required.

KAPPA 15 GR3/4 pumps include pulsation
dampener, adjustable pressure regulator and
gearbox for gas engines with 3/4” shaft

Features

KAPPA-15 pump coupled to heavy duty 12-volt DC motor
Max flow: 3.5 gpm
Max pressure: 150 psi
Port sizes: 3/4" HB inlet, 1/2" HB outlet
Pump shaft rotation: CW and CCW
Diaphragms: 2, semi-hydraulic, Desmopan® standard Buna available
Housing: Anodized aluminum
Recommended regulator: UD1/4-300 or 6815-1/2-300
Max amp draw: 35
Max fluid temperature: 140°F
Weight: 35 lbs

Specifications

Flow – GPM	3.5
Flow – L/min	13.3
PSI	200
Bar	20
Amps	35
Drive Configuration	2 Diaphragm HD 12-Volt DC Electric Motor
Weight	35 lbs.
