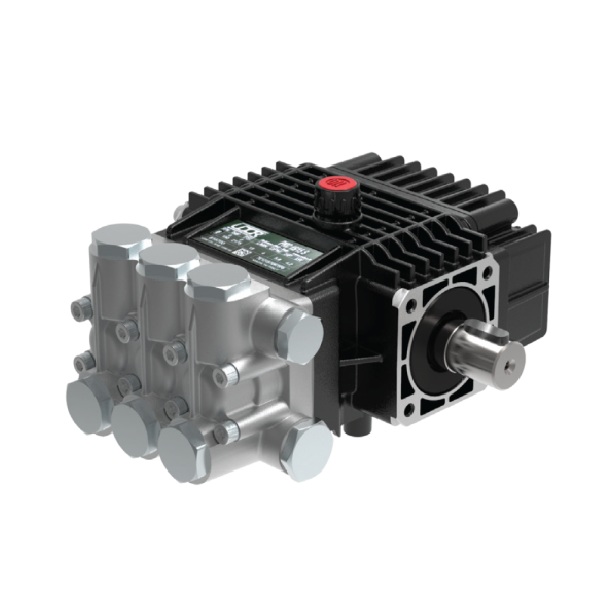

Udor USA PKWTC 13/15 S PKWT Series Solid Shaft Model 24mm Keyed Solid Shaft 3.4 GPM/2175 PSI/1450 RPM [PKWTC 13/15 S]

Click to enlarge

Your Price: $863.34
Part Number: PKWTC 13/15 S
Quantity:
Estimated shipping cost: $ 17.00

Udor USA PKWTC 13/15 S PKWT Series Solid Shaft Model 24mm Keyed Solid Shaft 3.4 GPM/2175 PSI/1450 RPM

Description

PKWT Series high temperature rated plunger pumps include a range of models with flow rates from 2.9 to 3.4 GPM and pressures up to 2175 PSI.

These pumps are designed and engineered with high temperature seals and nickel plated manifolds to withstand the demands of hot water applications.

PKWT series pumps are well suited for general pressure cleaning, disinfecting and food/pharma applications.

Features

• Nickel Plated Brass Manifold
• Heat Treated Crankshaft
• Solid Ceramic Plungers
• Stainless Steel Valve Caps
• Stainless Steel Piston Guides and Check Valves
• Industrial Quality Ball Bearings and Needle Bearings
• High Temperature Seals for Hot Water Applications
• 11.5 oz. Capacity Vented Oil Bath Crank Case
• 1/2” BSP-F Inlet. 3/8” BSP-F Outlet
• Max Fluid Temp, 185°F.

Specifications

Flow – GPM	3.4
Flow – L/min	13.0
RPM	1450
PSI	2175
Bar	150
Power Req.	5.0 EBHP
Weight	13.5 lbs

Product Page

Manual
