Scratch & Dent Imperial 1942-KIT-2HD 5.7" 2-Stage Tangential Vacuum Motor Kit
Part Number: 1942-KIT-2HD
This is a new, zero-hour scratch and dent vacuum motor kit for select 13 gallon carpet extractors. The motor was damaged in shipping with cosmetic damage, including a dent in the bottom and a hole in the plastic discharge horn, but it has been tested and confirmed to operate properly.
Condition Notice
- Scratch & Dent / Freight Damaged
- Brand new motor with zero operating hours
- Cosmetic damage from UPS shipping
- Tested and confirmed working
- Sold each
- Limited quantity available
Product Description
The Imperial 1942-KIT-2HD is a 115 volt, 5.7 inch, 2-stage tangential discharge vacuum motor replacement kit. This kit includes the motor and mounting hardware needed to replace the discontinued 4-hole style motor used in many 13 gallon extractors.
The original 4-hole motor has been discontinued and is replaced by this 3-hole motor kit with an included 4-hole mounting bracket adapter.
Common Applications
Designed as a replacement vacuum motor kit for the following extractor models:
- Powr-Flite PFX1380
- Powr-Flite PFX13080E
- Powr-Flite PFX1382
- Powr-Flite PFX1382CW
- Powr-Flite PFX1385
- Powr-Flite PFX1385E
- Other 13 gallon extractors using the same 5.7" 2-stage tangential discharge vacuum motor
Key Features
- 5.7 inch vacuum motor
- 2-stage design
- 115 volt operation
- Tangential discharge
- 3-hole motor with 4-hole mounting bracket adapter included
- Replacement for discontinued 4-hole vacuum motor design
- Ideal for carpet cleaning extractors and portable cleaning machines
What You Get
- One 1942-KIT-2HD vacuum motor
- Mounting kit / adapter bracket for 4-hole applications
Important Fitment Note
Please compare your existing vacuum motor, mounting pattern, voltage, discharge style, and overall dimensions before ordering. Vacuum motor part numbers can vary by extractor brand, private label, and production year.
Scratch & Dent Sale Terms
Because this is a discounted scratch and dent item, cosmetic damage is already disclosed and reflected in the sale price. This item is sold as a functional replacement motor with known cosmetic freight damage.
Optional Add-On Items
- Vacuum motor inlet tube / cone / horn
- Vacuum motor lint screen filtration kit
- 5.7 inch vacuum motor gasket
SEO Search Terms
Imperial 1942-KIT-2HD vacuum motor, 5.7 inch vacuum motor, 2 stage vacuum motor, tangential discharge vacuum motor, Powr-Flite extractor vacuum motor, PFX1380 vacuum motor, PFX1382 vacuum motor, PFX1385 vacuum motor, carpet extractor vacuum motor, 13 gallon extractor vacuum motor, scratch and dent vacuum motor. Replaces this discontinued vacuum motor to the right
2 STAGE VACUUM MOTOR 115V with 3 hole bolt pattern mounting + 4 hole bracket included.

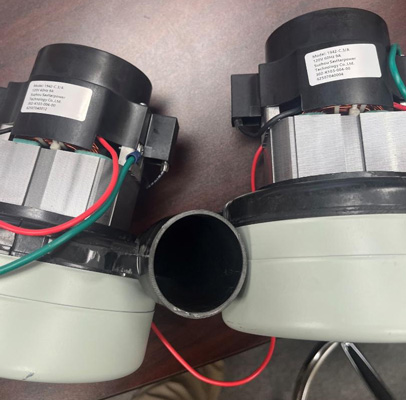

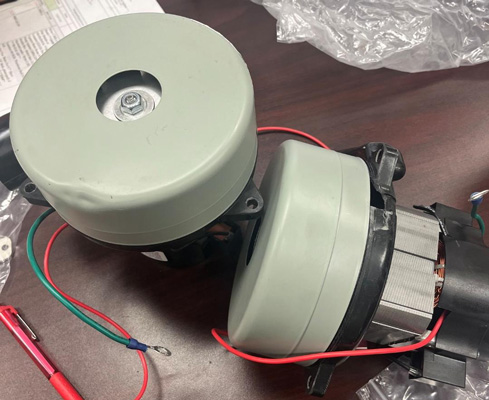

HISTORY, UPS DAMAGED THESE MOTORS WITH A DENT IN THE BOTTOM AND A HOLE IN THE PLASTIC ON THE DISCHARGE HORN. 2 MOTOR SETS AVAILABLE. SOLD EACH. TESTED AND CONFIRM WORK SAME AS FACTORY. BRAND NEW, ZERO HOURS ON MOTORS.

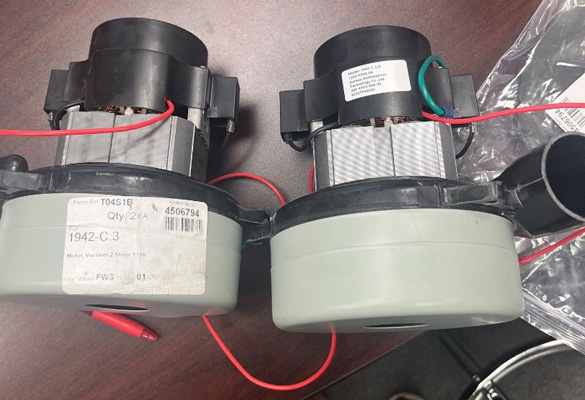

MOTOR TO THE RIGHT (4 hole) IS DISCONTINUED AND REPLACED WITH THIS 3 hole KIT with a free 4 hole bracket for 13 gallon extractors
Motor replacement kit for the PFX1380, PFX13080E, PFX1382, PFX1382CW, PFX1385 and PFX1385E extractors. Includes one motor and the necessary mounting kit.
Note: VBDST12431AEAD is the actual vacuum motor used in SPX Dock Products (Kelley) aFX Dockleveler, aFX-S Dockleveler & aFX-C Dockleveler (P/N 714-244K). See pictures below. Click on any for large version. Previous Kelley part number (P/N 711-969) subs to 714-244K now you can use theLH6472-AL-DL
