HydraMaster 000-038-015 Liquid-to-Liquid Heat Exchanger Core – CDS 4.8 Truckmount
OEM HydraMaster Replacement Heat Exchanger | 2" Outside Diameter x 36" Long | 1" Female Pipe Thread
The HydraMaster 000-038-015 is a liquid-to-liquid (water-to-water) heat exchanger core designed for use in HydraMaster CDS truckmounted carpet cleaning systems.
This heat exchanger transfers heat from the vehicle's engine coolant system to the truckmount's high-pressure cleaning solution, helping produce the hot water required for professional carpet and upholstery cleaning.
The heat exchanger uses a liquid-to-liquid heat transfer design, allowing heat from the vehicle's cooling system to warm the cleaning solution without mixing the two fluids.

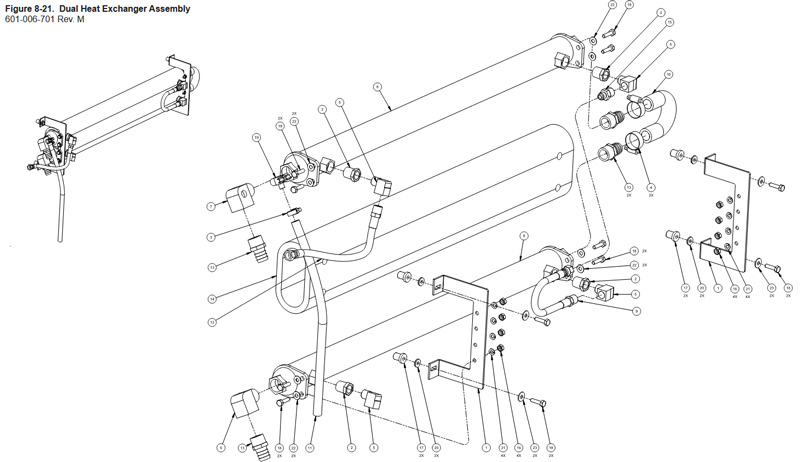

#8 in image below

Product Specifications
| Specification |
Details |
| Manufacturer |
HydraMaster |
| Manufacturer Part Number |
000-038-015 |
| Product Type |
Liquid-to-Liquid Heat Exchanger |
| Application |
Truckmount Carpet Cleaning Equipment |
| Compatible Equipment |
HydraMaster CDS 4.8 |
| Outside Diameter |
2 inches |
| Overall Length |
36 inches |
| Thread Size |
1" FPT |
| Heat Source |
Vehicle Engine Coolant |
| Heated Fluid |
High-Pressure Cleaning Solution |
| Quantity |
1 Heat Exchanger Core |
| Insulation Included |
No |
| Additional Fittings Included |
No |
HydraMaster Part Number Cross-References
-
000-038-015 – Current replacement heat exchanger core
-
000-038-046 – Original water-to-water high-pressure heat exchanger
-
000-078-987 – Additional part number associated with this heat exchanger
Important Replacement Information
According to the HydraMaster CDS 4.8 factory owner's manual:
When replacing the original 000-038-046 heat exchangers, HydraMaster specifies ordering TWO replacement heat exchanger cores, part number 000-038-015.
The original heat exchanger assembly uses two cores.
This listing is for ONE heat exchanger core only.
Customers replacing both original heat exchanger cores should order a quantity of two.
How the Heat Exchanger Works
The HydraMaster CDS liquid-to-liquid heat exchanger uses heat generated by the vehicle's engine to increase the temperature of the cleaning solution.
Hot engine coolant circulates through the heat exchanger, transferring thermal energy to the cleaning solution passing through the separate high-pressure circuit.
This design recovers heat from the vehicle's cooling system, reducing the need for a separate heating source.
Package Contents
Included:
Not Included:
-
Heat exchanger insulation
-
Mounting brackets
-
Additional plumbing fittings
-
Connecting hoses
-
Additional heat exchanger cores
Factory Parts Diagram and Owner's Manual
Refer to the HydraMaster CDS 4.8 factory owner's manual for the heat exchanger assembly illustration, individual component part numbers, and installation configuration.
Factory Reference: CDS Heat Exchanger Core Assembly – Product Support
Replacement Part Number: 000-038-015
Original Heat Exchanger Part Number: 000-038-046
Manufacturer Replacement Quantity: Two cores when replacing the original dual-core configuration.
Sold individually.
KIT, ALFA LAVAL HX RETRO - CDS
Item #8 in image
Sold each.
No insulation, no additional fittings included.
Used on some versions of Hydramaster CDS 4.8
Takes radiator van hot liquid and transfers to the cleaners high pressure hot water.
Core CDS Heat Exchanger.
Optional
 |
Magnetic Clamp-On Water Softener Descaler for Truckmount & Portable Carpet Cleaning Machines 20260425
- Helps prevent scale buildup in pipes, coils, heaters, and carpet cleaning heat exchangers
- Reduces or eliminates routine monthly descaling in many applications
- Clamp-on installation — no cutting, plumbing, salt, chemicals, or cartridge replacement
- Maintenance-free design — no salt, resin, plastic pellets, filters, or media to flush
- Improves heat transfer efficiency by helping keep mineral buildup off heater surfaces
- May improve water flow / GPM by helping reduce mineral restriction over time
- Only 4 inches long for installation in tight areas on portable and truckmount equipment
- Longer Equipment lifespan
|
